Суич CISCO Catalyst 9200L 48-port PoE+ 4x10G uplink Switch Network Essentials Sellable only with DNA licenses

Суич CISCO Catalyst 9200L 48-port PoE+ 4x10G uplink Switch Network Essentials Sellable only with DNA licenses

Name: Суич CISCO Catalyst 9200L 48-port PoE+ 4x10G uplink Switch Network Essentials Sellable only with DNA licenses
Brand: Cisco
SKU: Catalyst 9200L
Availability: OutOfStock

Продуктов код: 70364

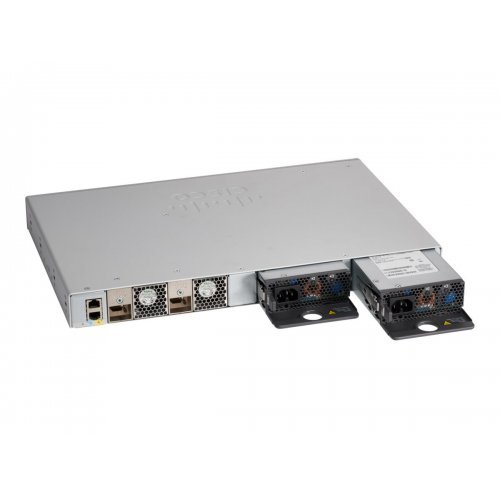

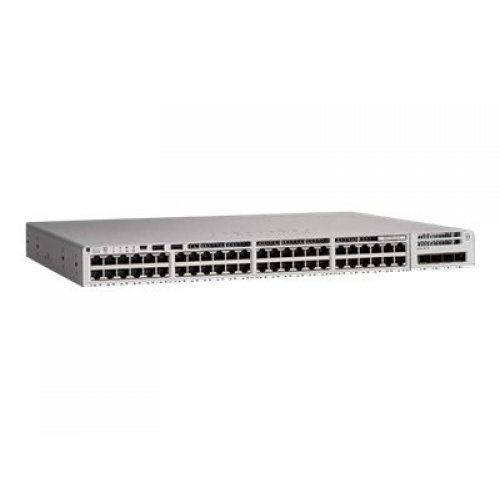

Суич Cisco Catalyst 9200L C9200L-48P-4X-E (снимка 1)

Суич Cisco Catalyst 9200L C9200L-48P-4X-E

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Cisco

Модел:

Catalyst 9200L

Партиден номер:

C9200L-48P-4X-E

Брой портове:

Жична мрежа (LAN)- макс. скорост на обмен:

Gigabit (Ultra) Ethernet (10/100/1000)

Възможности на суича:

PoE, SFP слотове/портове

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Cisco Catalyst 9200L

Производител :	CISCO
Продуктов номер на производителя :	C9200L-48P-4X-E

Описание
The Cisco Catalyst 9200 Series switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise. This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. The C9200L-48P-4X-E model has 48 ports 1G PoE+ with 4x 10G SFP+ fixed uplinks. Licensing is required.
продукт:
Име на продукта:	Комутатор, Catalyst 9200L 48-port PoE+, 4 x 10G, Network Essentials
Описание :	Cisco Catalyst 9200L - Network Essentials - switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+
EAN:	0889728170192

General
Device Type:	Switch - 48 ports - L3 - Managed
Enclosure Type:	Rack-mountable
Subtype:	Gigabit Ethernet
Ports:	48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE):	PoE+
Performance:	Stacking bandwidth: 80 Gbps Switching capacity: 176 Gbps Forwarding rate: 261.9 Mpps
Capacity:	Virtual networks: 1 MAC addresses: 16000 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 Switched virtual interfaces (SVIs): 512 Queues per port (egress): 8
Jumbo Frame Support:	9198 bytes
Routing Protocol:	OSPF, RIP, VRRP, policy-based routing (PBR), MSTP
Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF
Features:	EIGRP Stub Routing, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Remote Switch Port Analyzer (RSPAN), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Source-Specific Multicast (SSM), Blue Beacon LED, Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Superior QoS, Committed Information Rate (CIR)
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
RAM:	2 GB
Flash Memory:	4 GB
Built-in Devices:	RFID tag
Expansion / Connectivity
Interfaces:	48 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-X SFP+
Power
Power Device:	Internal power supply (not installed)
Max Supported Qty:	2
Voltage Required:	AC 100-240 V
Miscellaneous
MTBF:	346,270 hours
Compliant Standards:	Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AES-128, RoHS, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317
Dimensions & Weight
Width:	44.5 cm
Depth:	4.4 cm
Height:	28.8 cm
Weight:	5.5 kg

Основна информация

ProductFamily: Catalyst

Характеристики за управление

Тип суич: Управляем

Ниво на суича: L3

Система за поддържане качеството на услугите QoS: Y

Уеб базирано управление: Y

Поддръжка на MIB: BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEDIA-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-MPLS-LSR-EXT-STD-MIB, CISCO-NBAR-PROTOCOL-DISCOVERY-MIB, CISCO-NHRP-EXT-MIB, CISCO-NTP-MIB, CISCO-PAGP-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB ,CISCO-RTTMON-ICMP-MIB, CISCO-STACKWISE-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB

Портове и Интерфейси

Брой портове за основно превключване към RJ-45 Ethernet: 48

Тип портове за основно превключване към RJ-45 Ethernet: Gigabit Ethernet 101001000

Брой SFP + модули за слотове: 4

Брой USB 2.0 порта: 3

Мрежови възможности

Мрежови стандарти: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Поддръжка на 10G: Y

Медна ethernet кабелна технология: 100BASE-FX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T

IP маршрутизиране: Y

Записи за маршрутизиране: 3000

Spanning tree протокол: Y

Технологии за виртуализация на мрежата: Технология Virtual Extensible LAN VXLAN

IPv4 маршрути: 3000

IPv6 маршрути: 1500

Брой VLAN: 1024

Пренос на данни

Комутаторна способност: 176 Гбитс

Скорост на пренасочване: 130,95 Mpps

Таблица МАС адреси: 16000 влизания

Поддръжка на Jumbo Frames: Y

Джъмбо рамки: 9198

Буферна памет за пакети: 6 MB

Сигурност

Списък на управление на достъп ACL: Y

Алгоритъм за криптиране на данни: 128-bit AES

Мултикаст характеристики

Поддръжка за множествено предаване: Y

Протоколи

Протоколи за управление: SNMPv1v2cv3

Маршрутизиращ протокол: CDP, EIGRP, OSPF, RIP, VRRP

Дизайн

Възможност за мотнаж към други устройства: Y

Цвят на продукта: Сив

Безопасност: IEC 60950-1, UL 60950-1, CANCSA C22.2 No. 60950-1, EN 60950-1, ASNZS 60950.1, Class I Equipment

Електромагнитна съвместимост: 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
