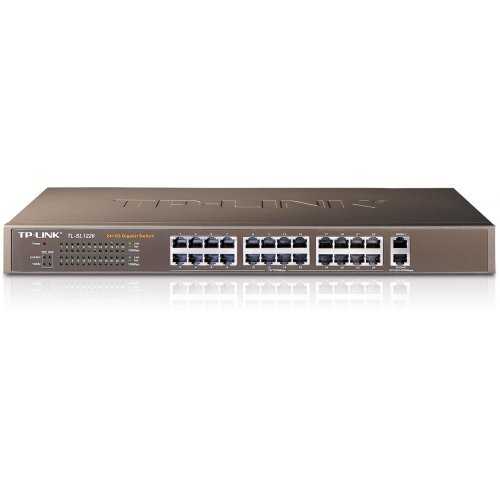

TP-Link TL-SL1226, 24-Port 10/100Mbps + 2-Port Gigabit Switch

Name: TP-Link TL-SL1226, 24-Port 10/100Mbps + 2-Port Gigabit Switch
Brand: TP-Link
SKU: TL-SL1226
Availability: OutOfStock

Продуктов код: 1554

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

TP-Link

Модел:

TL-SL1226

Партиден номер:

Брой портове:

Максимална скорост по LAN:

1 Gbps

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

TP-Link TL-SL1226

Quick Installation Guide Datasheet

24-Port 10/100Mbps + 2-Port Gigabit Switch
TL-SL1226

Highlights:

24 10/100M RJ45 ports + 2 10/100/1000M RJ45 ports
Green Ethernet technology saves the power up to 60%
Supports MAC address self-learning and auto MDI/MDIX

What This Product Does

The TL-SL1226 Gigabit Switch provides 24 10/100M Auto-Negotiation RJ45 ports and 2 10/100/1000M Auto-Negotiation RJ45 ports, all RJ45 ports Support Auto-MDI/MDIX function. TL-SL1226 Gigabit Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 1000M solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing the greater flexibility, installation convenience.

Gigabit Uplink

The TL-SL1226 has 24 fast Ethernet ports and 2 Gigabit uplink port. The Gigabit uplink port provides bandwidth access of up to 1000Mbps. Due to the fact that network upgrades tend to be progressive over time, your network will tend to become mixed with both Fast 100Mbps Ethernet and Gigabit. TL-SL1226 is ideal for situations such as these to mitigate throughput issues and coordinate work efficiently; Allowing your organization retain most of your network investments, while enhancing network performance quickly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new product TL-SL1226 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SL1226 can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of wheth

More Efficient

Utilizing non-blocking switching architecture, TL-SL1226 can forward and filter packets at full wire-speed for maximum throughput. Moreover, 100% data filtering rate eliminates all error packets and make your network work more efficiently.

Easy to Use

When powered on, it can work automatically without any pre-set. All ports support Auto-Negotiation and Auto-MDI/MDIX function. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Innovative energy-efficient technology saves power up to 60%
100% Data filtering rate eliminates all error packets
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
8.8Gbps Switching Capacity
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Support the port N-Way Auto-Negotiation, Store and Forward.
Compact size design for desktops, Rackmountable
Plug and Play design simplifies installation

HARDWARE FEATURES
Interface	24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) 2 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
External Power Supply	100-240VAC, 50/60Hz
Dimensions ( W x D x H )	17.37.11.7 in. (44018044 mm)

SOFTWARE FEATURES
Transfer Method	Store and Forward
MAC Address Table	8K
Advanced Functions	802.3X Flow Control, Back Pressure Auto-Uplink Every Port

OTHERS
Certification	FCC, CE, RoHS
Package Contents	24-Port 10/100Mbps + 2-Port Gigabit Switch Power Cord User Guide
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
