- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x,IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at standards
- 8 x 10/100/1000 Base-T Ethernet ports(PoE), 1 x 10/100/1000 Base-T Ethernet port(data), 1 x 1000 Base-X SFP port
- 16K MAC address and MAC address automatic learning
- 12Mb large buffer
- Switching capacity: 20 Gbps
- Support abundant services, such as static routing, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP and Telnet
- Support Profi Soft Controller management

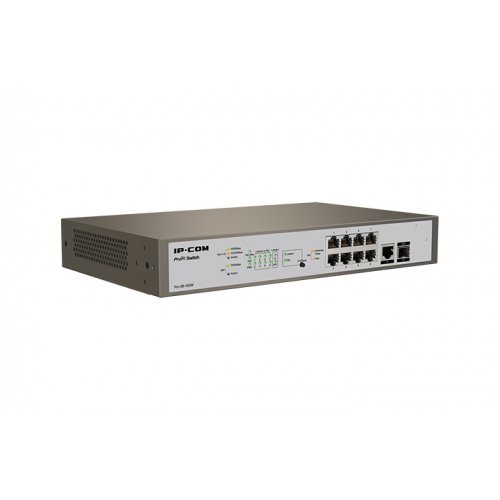

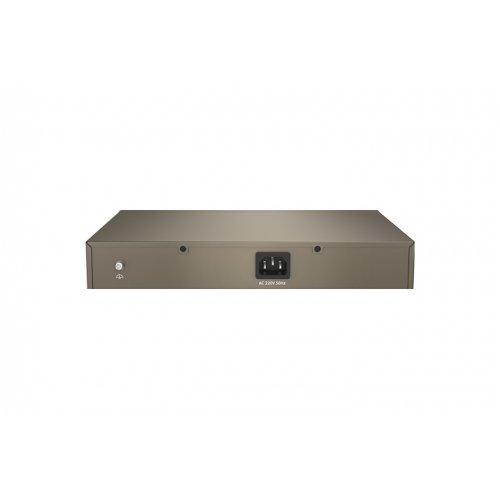

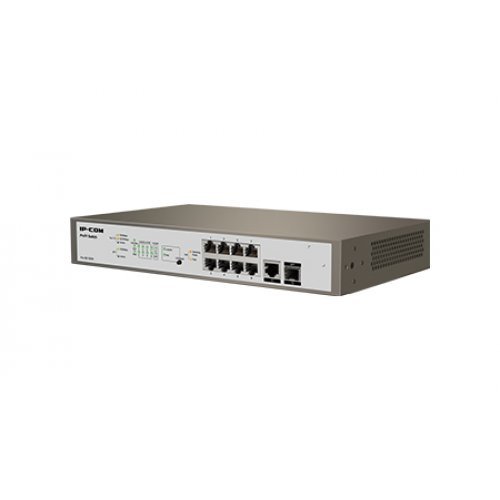

Pro-S8-150W is a Gigabit switch with 8-port PoE of IP-COM Profi software controller switch series, specially designed for such scenarios as SMBs and smart hotels. The switch can offer PoE output power up to 130W and support centralized control and management by IP-COM Profi software controller, allowing users to deploy the network
Routing Protocol
The switch Support static routing protocol which support layer-2 isolation and layer-3 intercommunication, thus achieving efficient and fast layer-3 forwarding.
Centralized Management
Support centralized management and device status monitoring by the Profi controller, and support remote access to cloud services, which is not restricted by the installation location of the device
Smart PoE power supply
It provides 8 Gigabit PoE ports that comply with the IEEE802.3AF/AT standards. The maximum output of the whole switch is 130W, and the maximum output power of a single port is 30W. Users can flexibly set PoE power supply time, that means the PoE power supply can turned on or off at regular intervals.
Visualization
The system can generate a network topology automatically. It support IP camera discovery based on ONVIF protocol and network device discovery based on LLDP, as well as online/offline status detection for all devices in the network, which improves the LAN operation and maintenance efficiency and also reduces the maintenance cost.
| Hardware specifications | |
|---|---|
| Network standards | IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3x、IEEE802.3af/at、IEEE802.1p、IEEE802.1q、IEEE802.1w、IEEE802.1d、IEEE802.1s |
| LED indicators | One Link/Act or PoE LED indicator for each port One Link/One Link/Act mode converting LED indicator for each device One PoE mode converting LED indicator for each device One PoE Max LED indicator for each device One Power LED indicator for each device One SYS LED indicator for each device |
| Fixed ports | 8 x 10/100/1000 Base-T Ethernet ports(PoE) 1 x 10/100/1000 Base-T Ethernet port(data) 1 x 1000 Base-X SFP port |
| Lightning protection | Port: 6 kV Power supply: 6 kV |
| Forwarding mode | Store-and-forward |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.9 Mpps |
| Switching buffer | 12 Mbit |
| MAC address table | 16K |
| Input voltage | 100 - 240V AC 50/60Hz |
| PoE power supply | Ports 1 to 8 support IEEE 802.3af/at standard PoE power supply 1 2 4 5 +, and 3 6 7 8 - |
| Whole switch consumption | Whole switch consumption: <150W Maximum PoE output power: 130 W |
| Dimensions (L x W x H) | 294 mm * 179.6 mm * 44 mm |
| Environment | Operating temperature: 0°C - 45°C Operating humidity: (10% - 90%)RH, non-condensing Storage temperature: -40°C - 70°C Storage humidity: (5% - 90%)RH, non-condensing |
| Certificates | FCC, CE, RoHS |
| Software features | |
| PoE power supply management | Port PoE configuration and power supply with priority PoE over-temperature protection PoE scheduled management Support intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status) |
| Security features | Support ARP receiving limit Support unknown mac address discard Support DoS attack defense Support 802.1x security authentication Support RADIUS authentication |
| VLAN | IEEE 802.1Q VLAN VLAN Layer-3 interfaces Support three port modes: Access, Trunk and Hybrid |
| DHCP | Support DHCP server Support DHCP relay Support DHCP snooping Support Option 82 policy configuration |
| Routing | Support inter-VLAN routing Support IPv4 static routing Support dynamic ARP and static ARP Support ARP aging configuration |
| Port aggregation | Support static aggregation Support LACP dynamic aggregation Support a maximum of 32 aggregation groups and a maximum of 8 member ports in each group |
| STP (Spanning Tree Protocol) | Support IEEE 802.1d STP (Spanning Tree Protocol) Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Support edge ports Support BPDU statistics Support BPDU Guard, BPDU Filter Support Root Guard, Loop Guard, and Loopback-detection |
| Multicast | IGMP Snooping V1/V2/V3 Support port fast leave |
| Port mirroring | N: 1 port mirroring supported |
| QoS | Support SP (Strict Priority) Support SWRR (Simple Weighted Round Robin) Support WRR (Weighted Round Robin) Support 802.1p port trust mode Support DSCP port trust mode Support a maximum of 8-queue service quality mapping Support Tail Drop Support storm suppression Support port speed limit |
| ACL | Support MAC ACL Support IPv4 ACL |
| Loading and upgrade | Support FTP/TFTP/HTTP upgrade Support con guration import and export |
| Management and maintenance | Support centralized control and management by Profi software controller Support CLI configuration Support Telnet remote configuration Support SNMP V1/V2/V3 Support web management and maintenance Support system logs Support log classification Support NTP Support Ping & Tracert tests Support memory and CPU monitoring |
